REMOVABLE ACOUSTIC PARTITION of 107 MM, eVo 100 CLASSIC scalable, acoustic and functional, perfect solution to shape your spaces according to your desires.
107 mm thick, removable partition wall, under joint cover, compliant with DTU 35.1, eVo 100 Classic, designed to create or reinvent your workspaces.
Presentation:
Quick to implement thanks to its joint cover directly clipped on pole. eVo100 CLASSIC allows perfect modulation of the workspace. The diversity of its configurations makes it a versatile system. Its aluminum frame is lacquered among a wide choice of powders from the RAL register. The extended gasket cover of the eVo100 CLASSIC makes it possible to extend an existing drywall without changing thickness.
eVo CLASSIC accepts all types of glazing from 6.8 to 12.8 mm, as well as a wide choice of cladding: standard or phonic plasterboard coated paper, PVC or pre-lacquered sheet metal, 12 mm melamine panel or 12 mm wood chipboard.
eVo 100 CLASSIC actively contributes to obtaining HQE, BREEAM and LEED environmental certifications for commercial buildings.
CONFIGURATION of our modular partition Evo 100:
- Full height
- Full with glazed transom
- Full height glazed
- Glazed on solid sill
- Glazed on sill and full transom
- Double glazing
FULL FILLS:
A variety of siding is compatible with the eVo 100 CLASSIC system: standard BD13 plasterboard or acoustic plasterboard coated paper, PVC or pre-painted sheet 0.75 mm; Twin plate 18.5 mm; cellulose fiber plate; melamine panel 12 mm; chipboard wood 12 mm; Compact laminate panel 12.5 mm.
GLASS FILLING:
The removable partition eVo 100 CLASSIC accepts laminated or tempered glazing from 6.8 to 12.8 mm thick.
OPTIONS:
Accessories: Venetian
blinds Glazing: sandblasting, lacquering, vitrophanie, printing on glass
DOORS:
The square frame in lacquered aluminum accepts a variety of standard doors or any height: solid core laminated wood door 40 mm; Full or glazed aluminum frame door swing or sliding. Glass door type Clarit 8 or 10 mm. Swing or sliding. And high-end DUAL bi-flush swing door 107 mm thick in aluminum or wood laminate.

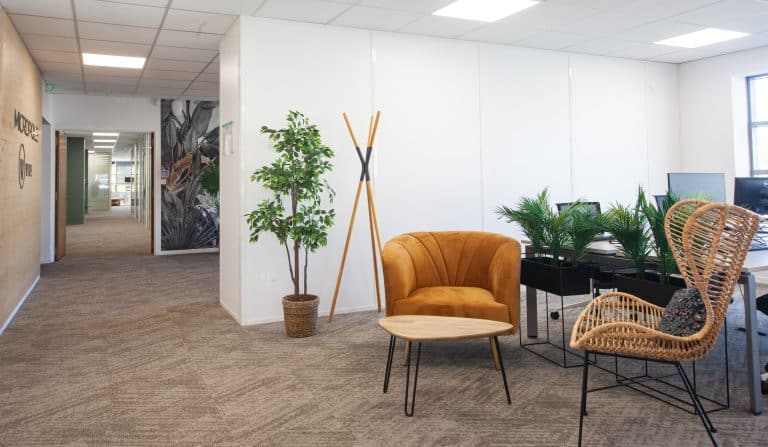

USES of this modular partition:
Individual
offices Circulations
Meeting room
