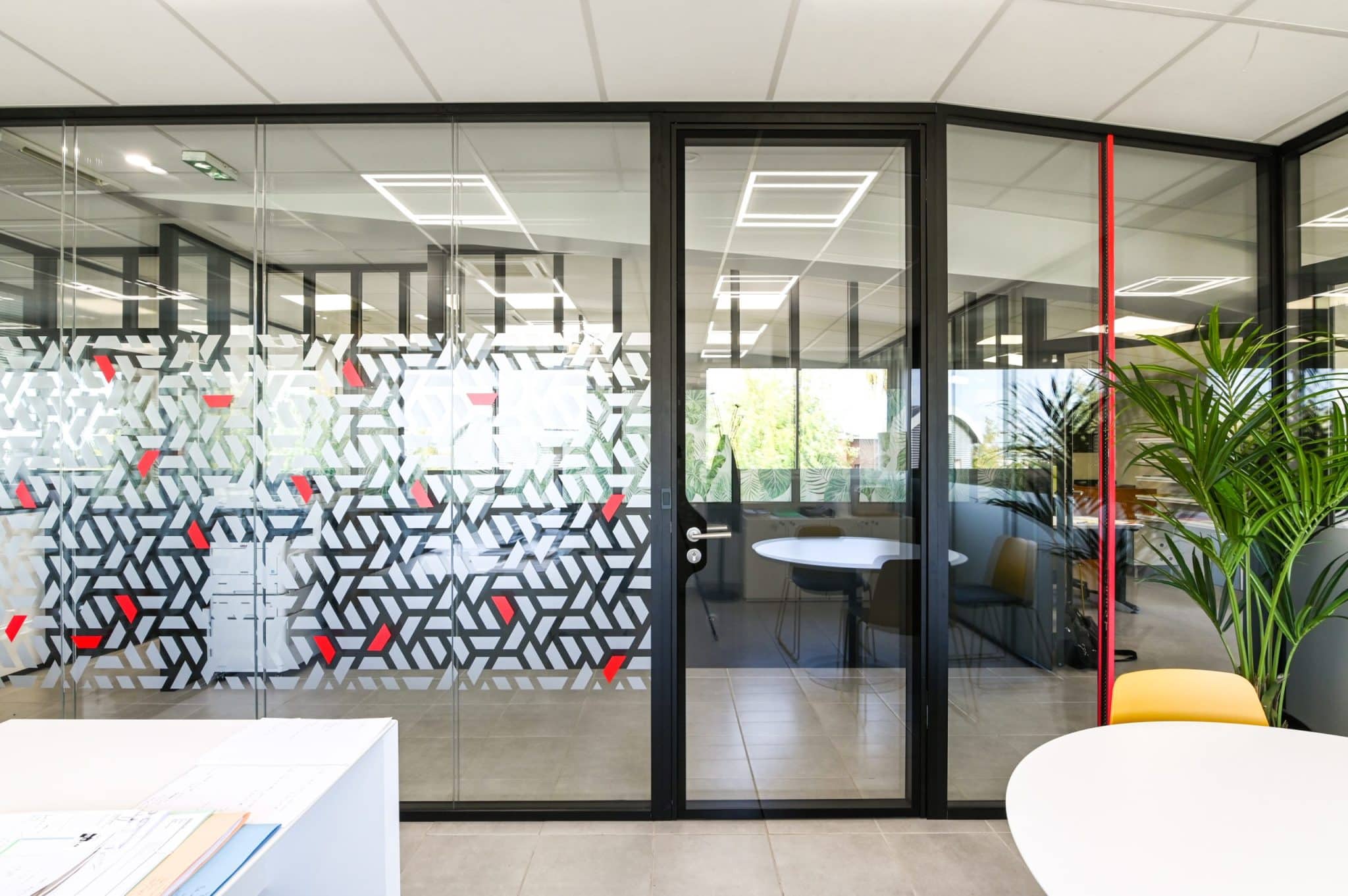

REMOVABLE ACOUSTIC PARTITION of 107 MM, Evo 100 FIFTY customizable, combining transparency and aesthetics.
Removable partition wall 107 mm thick, is the first edge-to-edge mounting system, compliant with DTU 35.1, suitable for the layout of workspaces.
Presentation:
eVo 100 FIFTY is the first mounting system for removable, removable glass edge-to-edge bulkhead with guardrail certification. In lacquered aluminum, eVo 100 FIFTY is customizable using powders from the RAL card or structured metallic finishes.
Compatible in single or double glazing, eVo 100 FIFTY removable partition 107 mm accepts all glass modules from 8.8 to 12.8 mm. In double glazing, it is possible to integrate a decorative connection to work a signage directly integrated into the partition.
Like the glazing that makes up the partition, all FIFTY components are reusable.
eVo 100 FIFTY actively contributes to obtaining HQE, BREEAM and LEED environmental certifications for commercial buildings.
CONFIGURATION of our modular partition Evo 100:
Full height
glazed Single glazing centered or offset
Double glazing
GLASS FILLING:
eVo 100 FIFTY accepts laminated or tempered glazing from 10 to 12.8 mm thick.

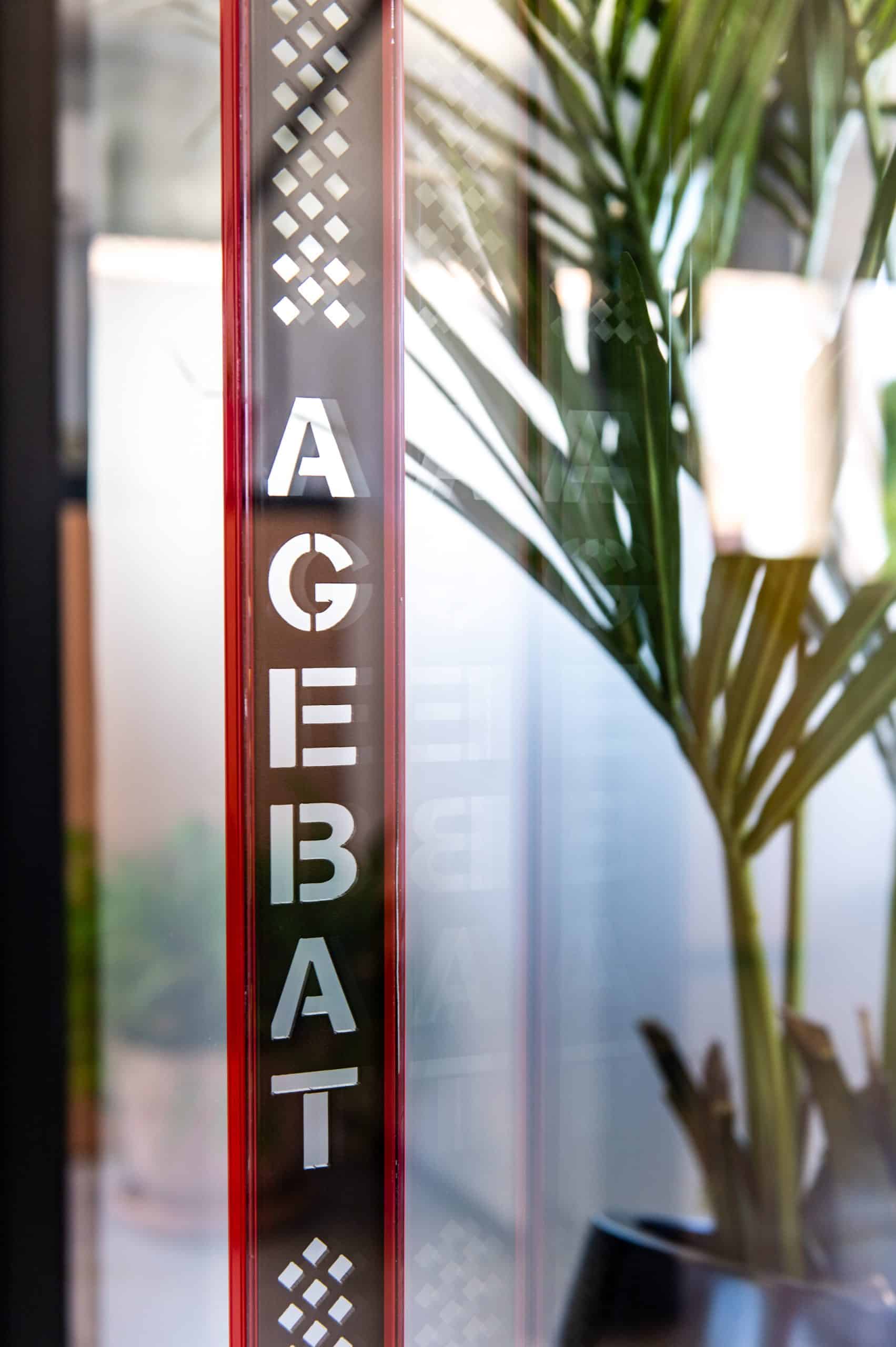

DECORATIVE BOND:
In double glazing, eVo FIFTY can accommodate a decorative connection cut with water jet or laser to integrate design signage directly to the removable partition. Motifs and / or texts come to dress the partition.
OPTIONS:
Wide choice of lacquering: RAL, Structured Metallized
Decorative connection cut with laser or water jet
DOORS:
A perfect complement to the eVo 100 FIFTY glazed edge-to-edge partition, the DUAL Silence bi-flush door offers a sleek high-end layout. Available in laminated wood or glazing, the DUAL Silence door fits into a reversible square frame in lacquered aluminum.
USES of our removable partition walls:
Individual
offices Circulation
Meeting room
Collaborative
workspaces Lobby
